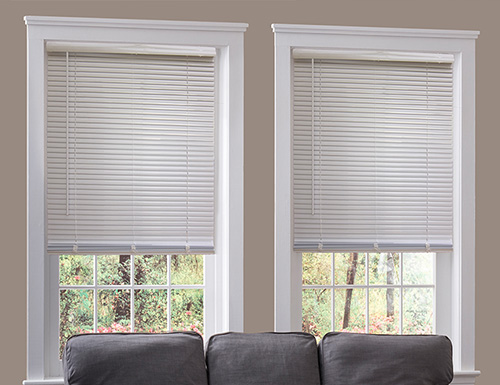

Each aluminum blind comes with a matching 2 slat valance, color coordinated cords and ladders, and wand tilt. Optional channel valance upgrade available for a more pleasing look.
The cordless headrail is 1" high and 1 1/8" deep, and is a u-shape channel. The flush mounting depth is 1.750".
Looking for more styles? See our full selection of
quality Aluminum / Vinyl Mini Blinds.
Explore our selection of window treatments made in USA.
Product Details
Light Control
Room Darkening
Slat/Louver
Size
1"
Valance
The integrated headrail offers a sleek, finished appearance without the need for a separate valance.
Aluminum Gauge
8
Tilt Control
Wand Only
Made in USA
Made with imported and USA parts.
Fire Retardant
NFPA 701 Fire Test 1 (small) 2004 Edition
Note
Headrail end caps are made of PVC and can appear white on dark colored mini blinds.
Made in USA
Measure & Install
How To Measure
How To Install
Professional
Measuring & Installation
General Specifications
Width
7" - 120"
Height
8" - 120"
Minimum Mounting Depth
3/4"
Minimum Flush Mounting Depth
1 3/4"
Headrail Dimension
1" H x 1 1/2" D
Wand Specification
Blind Height
Wand Length
<= 25"
12"
25-1/8" - 45"
18"
45-1/8" - 45"
24"
55-1/8" - 65"
30"
65-1/8" - 85"
40"
85-1/8" - 105"
50"
105-1/8" - 125"
60"
> 125"
72"
Multiple Blinds on a Shared Headrail
Because large blinds and shades can be heavier and more difficult to raise and lower, the 2-on-1 or 3-on-1 headrail option allows two or three smaller shades to share one common headrail and valance. This creates a cleaner, more streamlined look across wider windows.
A small 1/4" to 1/2" gap between adjacent shades is normal and required for proper operation.
Note: Motorized lift is not available with the 2-on-1 or 3-on-1 headrail configuration.
A small 1/4" to 1/2" gap between adjacent shades is normal and required for proper operation.
Note: Motorized lift is not available with the 2-on-1 or 3-on-1 headrail configuration.
Cordless Lift
Raise and lower your blinds without cords. This upgrade is great for homes with children because there are no dangerous lift cords. Not recommended for sizes wider than 96 inches.
Width
18" -
96"
Height
8" -
96"
Minimum Mounting Depth
3/4"
Flush Inside Mounting Surface
1 3/4"
Headrail
1" H x 1 1/2" D. Steel headrail with phosphate coated vinyl primed finished with a polyester baked enamel.
Motorization
Make sure to order at least one remote or smart hub to control your motorized shades. One remote can operate more than one shade. Raise and lower your window shades with the touch of a finger. Our remote controlled shades use a radio technology system.
Width
18" -
118"
Height
12" -
120"
Minimum Mounting Depth
1"
Flush Inside Mounting Surface
3-1/4" when hooking the rechargeable battery pack behind the headrail
2" when installing the rechargeable battery pack to the window frame or wall.
2" when installing the rechargeable battery pack to the window frame or wall.
Power Source
Rechargeable USB-C Battery.
Battery Life Expectancy
1 year (about 500 operation cycles)
Control Options
Remote Control
Compatible with Smart Home Devices
No
Z-wave Compatible
No
Installation
Charger
Used to re-charge the batteries for a motorized shade. One charger can be used for multiple motorized shades so you may buy just one per order but you can always buy extra. If you select motorization we recommend adding at least one charger.
Type
Charge block & 80" USB-C cable
Remote - 15 Channel
Control up to 15 individual shades or groups of shades on one remote control. Must select the motorization upgrade as well.
Color
White
No Lift - Tilt Only
Tilt-Only Operation: Due to the size of this blind, it features slat tilting functionality without lift capability. The horizontal slats can be angled to control light and privacy, but the blind cannot be raised or lowered from the window.
Wand Motorization
The wand motorization is ideal for child safety with no lift cords. With the press of a button raise and lower the shades with ease. Simply press and hold the button to raise or lower the shades and release to stop at the desired position. The wand motorization operates with a battery powered motor.
Width
28" -
72"
Height
12" -
118"
Minimum Mounting Depth
1"
Flush Inside Mounting Surface
3-3/4" when hooking the rechargeable battery pack behind the headrail
2-1/4" when installing the rechargeable battery pack to the window frame or wall.
2-1/4" when installing the rechargeable battery pack to the window frame or wall.
Power Source
8 AA batteries (included)
Battery Life Expectancy
1 year (about 500 operation cycles)
Other
Wand is clear with white cord inside and will be approximately half the drop of the blind.
Installation
Available Customization Options
Tilt Control
The tilt control is used to open and close the blind slats. This option allows you to select the position of the tilt control on the blinds.
Hold Downs (Outside Mount Only)
Hold downs are used to tie the bottom of the window blinds. This is used for applications such as french door blinds to keep the blinds from moving when closing the door.
